150W Boost Converter DC-DC 12-35V Step Up Voltage Charger Module (booster)

€9.90
Tax included

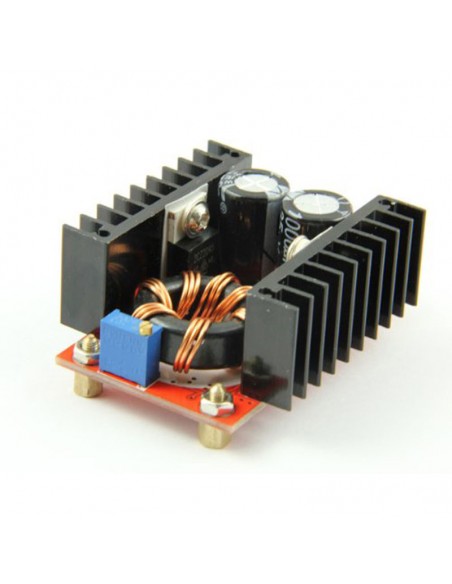

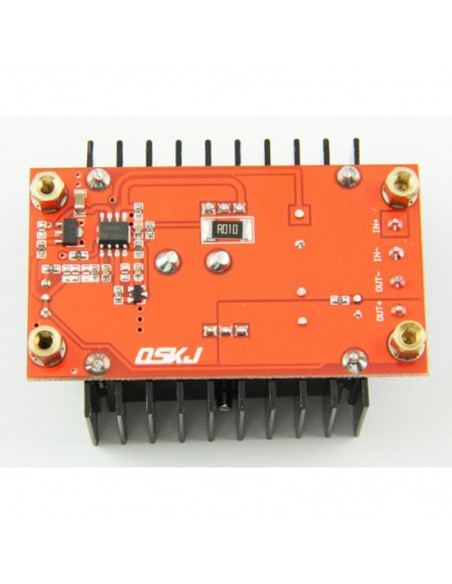

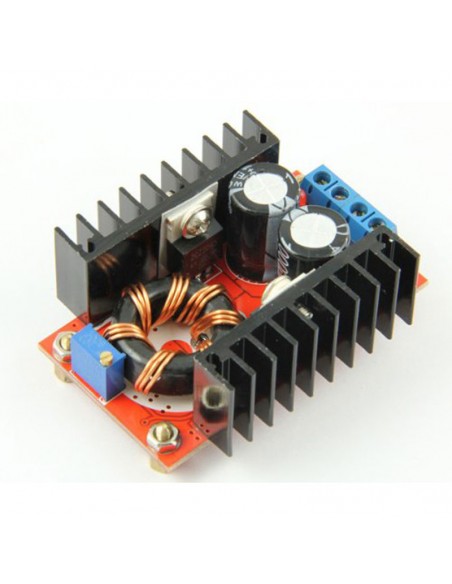

This is a simple to use DC-DC step-up circuit. Use it to boost a lower voltage to an higher one. This circuit boasts a passive cooling system allowing you to power high power systems (led matrixes or motors for example).

Quantity
en stock

Module Properties: non-isolated step-up module (BOOST)
Size: 65 * 56.5 * 23 (length * width * high) (mm)
Input voltage: 10-32V
Output voltage: 12-35V (adjustable)
Output Current: 6A (MAX)
Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)

Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40°c, lower power use, or enhance heat dissipation)
Full load temperature rise: 45°c
No-load current: 25mA typical
Voltage regulation: ± 0.5%
Dynamic response speed: 5% 200uS

Short circuit protection: None (Please Install fuses and protection circuits at Input port.)
Input Reverse Polarity Protection: None (Please Series diode at the input port.)
